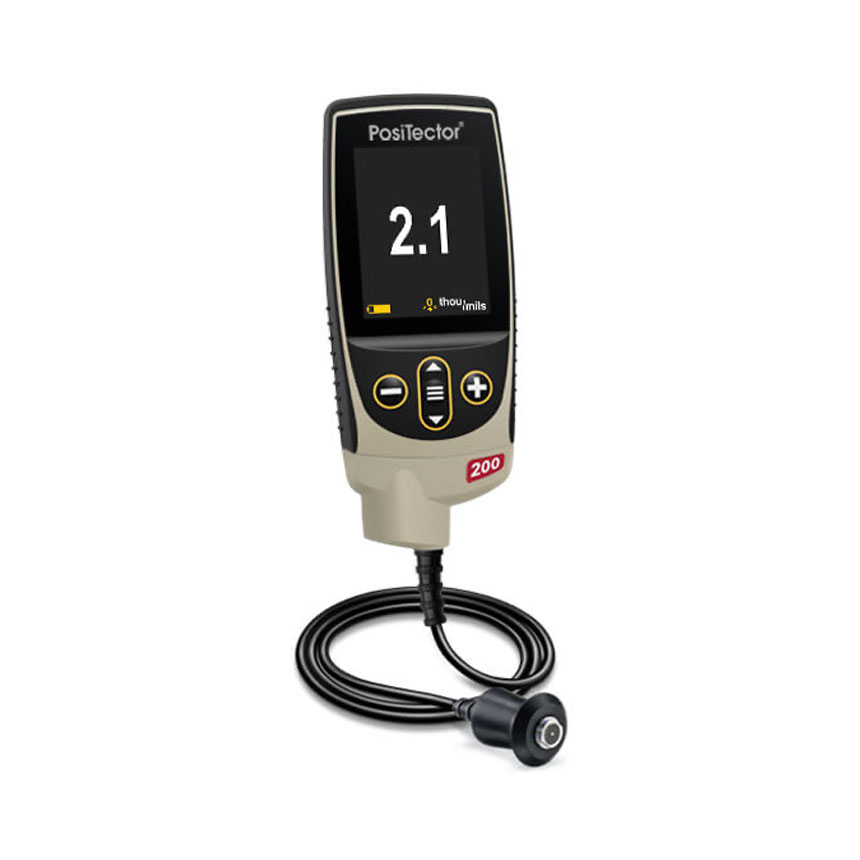

DeFelsko PosiTector 200 B1 Standard Ultrasonic Coating Thickness Gage for Non-Metal Substrates
Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.
Features:
- Ready to measure—no adjustment required for most applications.
- Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation.
- Auto rotating display with Flip Lock.
- On-gage help explains menu items at the touch of a button.
- RESET feature instantly restores factory settings.
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
- Weatherproof, dustproof, and water resistant—IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance.
- PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage.
- Mils/Microns switchable
- Selectable display languages.
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring.
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range—ideal for ignoring unwanted surface echos
- Screen Capture – save 100 screen images for record keeping and review.
- Up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data.
- Software Updates via web keep your gage current.
- Two-year warranty on gage body AND probe.
PosiTector Probes
PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness or ultrasonic thickness gage. Additional gages available by special order. Please call for pricing.
1704649 PosiTector 200 B Probe - Ultrasonic Coating Thickness
1704670 PosiTector 6000 FN Probe - Magnetic and Eddy Current Coating Thickness
