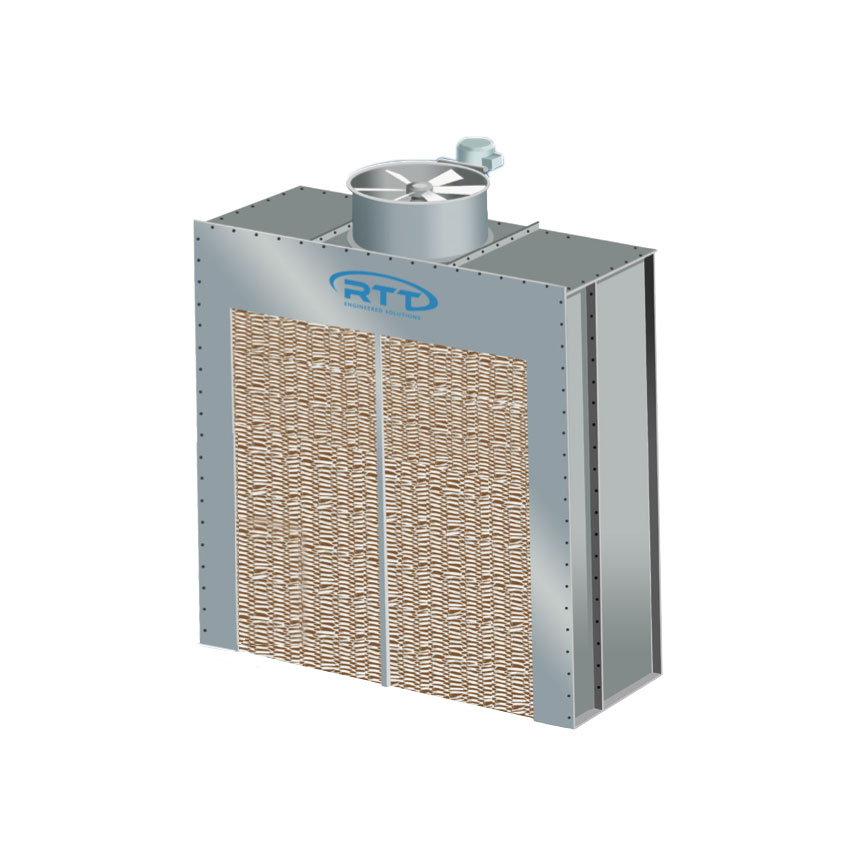

RTT 10ft Exhaust Walls

Exhaust Walls

SKU #1700311
• Keep the air you breathe clean fresh
• Walls are 10ft 4in Wide
• 30" Fan Diameter
Availability: In Stock
Price:
$5,185.00

Keep the Air You Breathe Clean and Fresh

Keep yourself comfortable and breathe clean and fresh air while you undertake painting jobs by installing Exhaust Walls in your auto body shop. Boasting a heavy duty construction, exhaust walls are floor model chambers designed to keep the work environment free from health hazards.

Why do need exhaust walls in your auto repair shop?

The painting process emits dangerous fumes, vapors and dust, which if inhaled over a prolonged period of time can be detrimental for your health. These can lead to respiratory problems and the accumulation of toxins in the body.

Exhaust walls have dry arrestor filters that catch all the airborne overspray particles and emit filtered air through it into your work environment. A tubeaxial exhaust fan design makes them good for use in paint spray exhaust chambers to direct the airflow in full force through the booth and exhaust stack. Built with a non-sparking construction, these exhaust walls made in the USA adhere to workplace safety standards. These walls have their bearings and motor drive closed from the exhaust's air stream.

Quality construction

The chambers in the exhaust wall are made from 18-gauge galvanized steel of the best quality. Structural steel is useful for making the chambers strong and rigid. These easy to install exhaust walls feature a heavy duty construction to withstand the rigors of use and deliver optimum performance. They show off a modular design which enables conversion to a paint booth when necessary.

All of these exhaust walls come with manometer draft gauge and utilize affordable blanket style filters. Adding air replacement units, reduced airflows and intake chambers can aid processes of automatic spray. Breathing fresh and clean air free of toxic substances is possible with the use of exhaust walls. Available in a wide range of designs and configurations, Exhaust Walls help meet diverse requirements in any automotive body shop.

NOTE: Control panel is optional.

NOTE: If used for painting, the fan & motor must be upgraded to an explosion proof fan or be roof mounted out of spraying area.

Key Features of the Exhaust Walls:

  • Solid Construction: withstands the wear and tear of everyday use
  • Premium Quality Chambers: made from 18-gauge galvanized steel
  • Modular Design: converts to paint booth easily
  • Quick Installation: makes setup easy for immediate use
  • Manometer Draft Gauge: keeps a check on air pressure levels
  • Blanket style filters
  • Made in USA

Technical Specifications

1700311 Technical Specifications

  • Exterior Dimensions: 10'4"W x 7'2"H x 3'2"L
  • Fan Diameter: 30"
  • Fan HP: 2 HP
  • SCFM @ 1/2" SP: 8,750
  • # of Filters: 20

1700312 Technical Specifications

  • Exterior Dimensions: 10'4"W x 8'2"H x 3'2"L
  • Fan Diameter: 30"
  • Fan HP: 3 HP
  • SCFM @ 1/2" SP: 10,000
  • # of Filters: 20

1805712 Technical Specifications

  • Exterior Dimensions: 10'4"W x 10'2"H x 3'2"L
  • Fan Diameter: 30"
  • Fan HP: 3 HP
  • SCFM @ 1/2" SP: 12,500
  • # of Filters: 25

1700313 Technical Specifications

  • Exterior Dimensions: 10'4"W x 12'2"H x 3'2"L
  • Fan Diameter: 30"
  • Fan HP: 5 HP
  • SCFM @ 1/2" SP: 15,000
  • # of Filters: 30

This product ships by truck freight. You will be contacted with shipping charges before order is processed.
