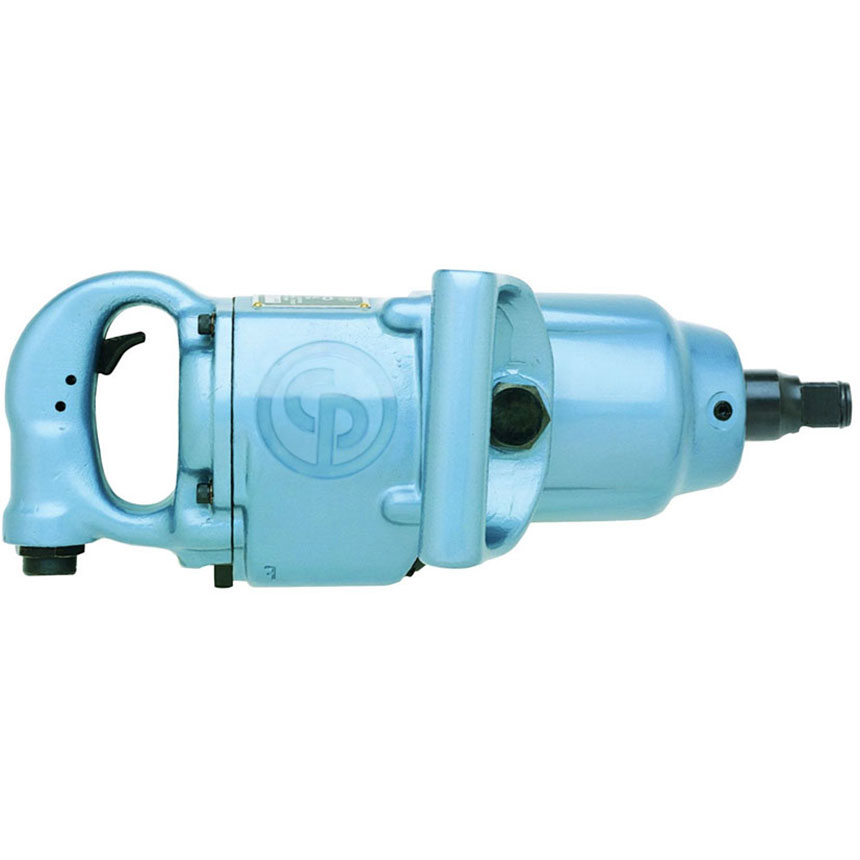

Chicago Pneumatic 1" Super Duty D-Handle Impact Wrench - CP797

Air Tools

SKU #1809442
• 1080 Blows per minute
1" straight impact
• 4200 rpm free speed
Availability: In Stock
Price: $1,519.00
$1,519.00
  • The undisputed market leader
  • Workhorse of the truck tire industry
  • Clutch delivers smooth operation and extreme durability
  • Ideal for high volume work on trucks, buses, and heavy equipment
  • 1" straight impact wrench
  • Rocking dog clutch
  • High performance and durability
  • Teasing throttle
  • Convenient reverse valve

Specifications

  • Handle type: D-Handle Inside Trigger
  • Square drive: 1"
  • Working Torque Range (fwd): 203-1,220Nm150-900
  • Maximum Torque (reverse): 1898Nm1400ft.lbs
  • Free speed: 4200rpm
  • Blows per minute: 1080
  • Net weight: 12.25kg27lb
  • Power/weight ratio: 154.9Nm/kg51.9ft.lb/lb
  • Length: 394mm15.5"
  • Average air consumption: 4.7l/s10cfm
  • Actual air consumption: 28.2l/s60cfm
  • Air inlet thread size: 0.5"
  • Min. hose size: 13mm1/2"
  • Noise level: 110db(A)
  • Sound Power: 121db(A)
  • Vibration (ISO-8662-7): 7.6m/s²
  • Vibration α (ISO-28927-2): 12.8m/s²
  • Vibration K (ISO-28927-2): 4.3m/s²
  • Socket retainer: Dual
  • Clutch type: Double rocking dog - Oil bath
  • Box dimensions: 615x180x150
