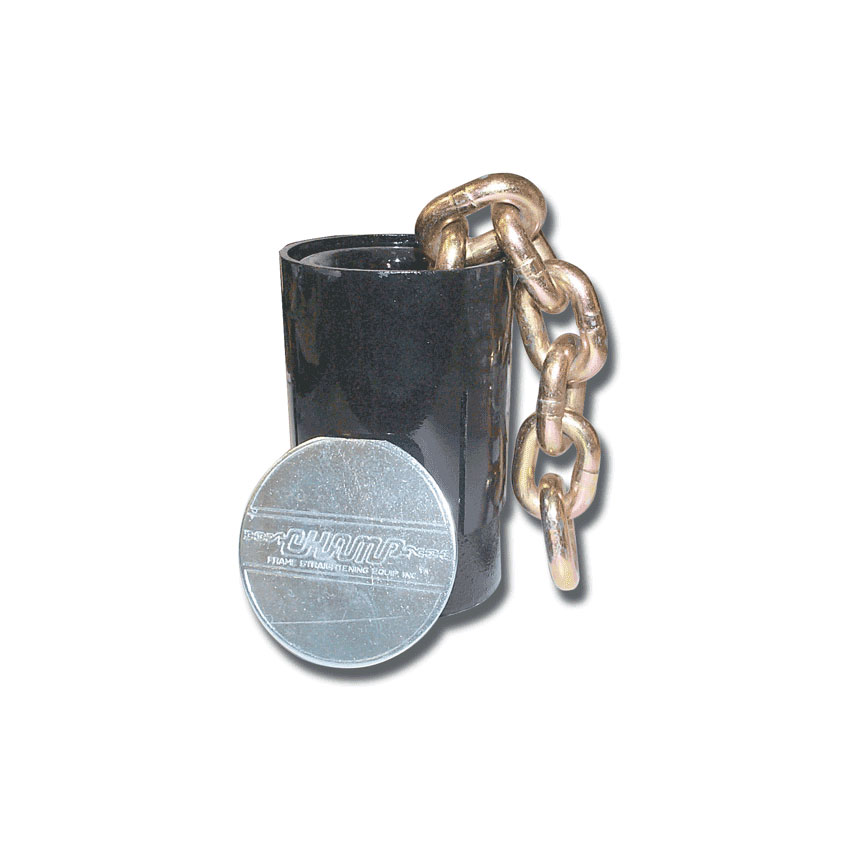

Champ Floor Anchor Pot 1600

Equipment & Tools

SKU #1815816
Availability: Out of Stock
Price: $39.95
$39.95
Chain cars to the floor in your auto body shop firmly with the Champ Floor Anchor Pot – 1600 and it will help you work efficiently.

Made in the USA with premium quality materials, this anchor pot with a removable chain is capable of a sturdy, 10-ton performance. The removable chain ensures that the entire anchor pot does not require a replacement if the chain happens to break during the course of use. What's more, you can remove and relocate the anchor pot, as and when you find necessary, to carry out automotive pulling jobs.

Core drill and install this chain type anchor pot to your concrete floor and it becomes a useful addition in your workshop. Here's an outline of one of the methods of installing a floor anchor pot.

The anchor pot is installed in the holes and the height is set by applying a reasonable amount of pressure on it. This makes it stay put till you begin using it for pulling. You could use a simple floor jack to help you with the installation process. Lay a board or piece of steel over the lip of the hole so that the pot is not able to come past it. Place the wheels or jack front over the board to set the pot by using the right down pressure, which is the same as the upward pull.

You need to keep in mind that the saddle of the jack should be over the pot center. Envelop the saddle with a chain and attach the pot to the chain or release it in the T-top and fasten it to the saddle. Pumping the jack will set the pot and hold it at the height you want. While you use and apply pressure each time, you will be able to set the anchor pot even harder.

This floor anchor pot is designed to tighten with every pulling effort. Quick to install and easy to use, the Champ Floor Anchor Pot – 1600 can serve you tirelessly through body work or help you in straightening axles.

Key Features of the Champ Floor Anchor Pot – 1600:
  • Quick Installation: requires simple core drilling to get it working on concrete floor
  • Removable Chain: takes care that the entire pot does not require to be replaced each time it breaks
  • Easy Re-installation: if there is a need to shift it to another location
Technical Specifications
  • Diameter: 3 ½"
  • Chain Grommet Thickness: 3/8"
  • Sleeve Height: 4"
  • Made in the USA

4" minimum concrete depth required for installation.

Anchor Pot Options:

  • Champ Floor Anchor Pots - Qty 6 - Order SKU 1808853
  • Champ Floor Anchor Pots - Qty 12 - Order SKU 1808849
  • Champ Floor Anchor Pot & Instant Floor Plate Kit - Order SKU 1808850
  • Champ Floor Anchor Pots & Instant Floor Plates - Kit of 6 - Order SKU 1808851
  • Champ Floor Anchor Pots & Instant Floor Plates - Kit of 12 - Order SKU 1808852

Air & Express delivery is available on Anchor Pots. Due to weight, shipping rates must be quoted by phone. Please call 800-367-6575.
