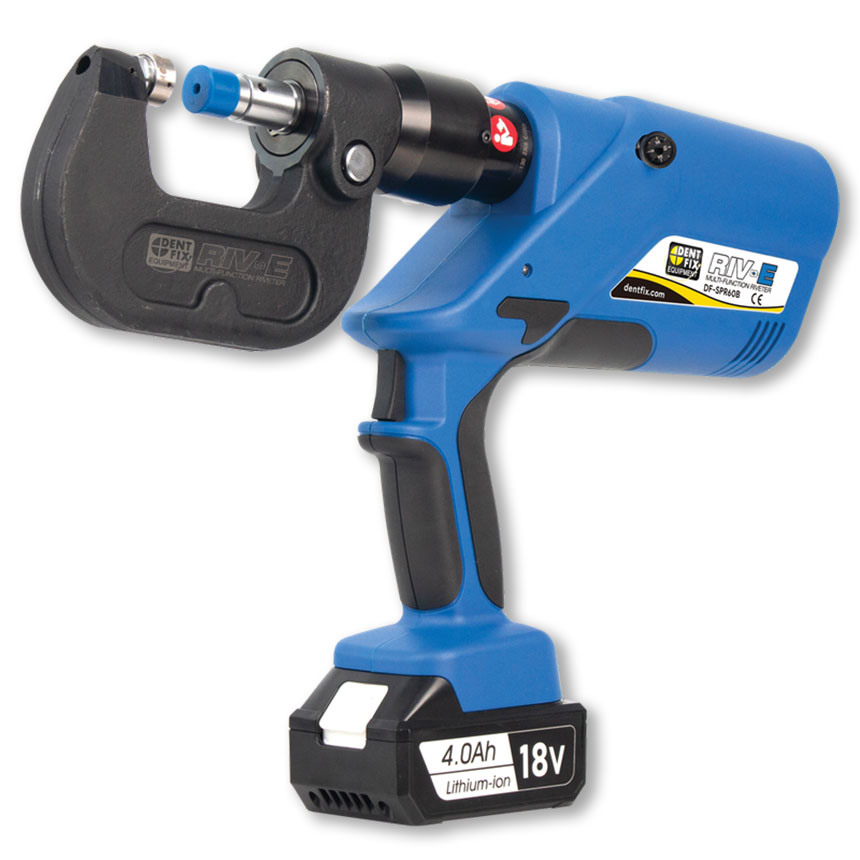

The DF-SPR60B RIV-E Multi-Function Riveter is an easy to operate panel replacement tool.
Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets, Flow Form Rivets, Hole Punching, and Flattening.
Features & Benefits
- Auto Pressure - Hold the trigger and the unit automatically releases pressure when complete.
- SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
- Optimal Pressure - Range Set to a minimum of 30KN up to a maximum of 60KN of pressure.
- Dial Control - The rotational dial allows the user to easily set the desired pressure settings.
- Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.
Specifications
- MAX PRESSURE: 6 Tons (60 KN)
- MIN PRESSURE: 3 Tons (30 KN)
- WEIGHT: 11 lbs
- WORK PERIOD: 3-5s/time
- WORK STROKE 35-40mm
- SPR DIE SETS: 3.3mm & 5.3mm
- EXTRACTION DIE SET: Yes
- FLOW FORM DIE SET: Yes
- PUNCH DIE SET: Yes
- FLATTENING DIE SET: Yes
- MOTOR VOLTAGE: 18V DC
- BATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZ
- CHARGE TIME: About 1 Hour
- WORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)
Includes:
- Riveter
- Small Arm
- Dies Kit
- Charger
- Battery
- Sling
- Rugged Case with foam inserts
