Chassis Liner Truck 'N Revolution 22' Frame Rack

Chassis Liner

SKU #1700479
Availability: Out of Stock
Price: $26,837.00
$26,837.00


Exclusive! Clear Floor wheel-less technology! Towers roll around Chassis Liner's exclusive Rolla-matic Track.
  • 86" bed width accommodates trucks, SUVs and unibody cars
  • 27" bed height for a safe and comfortable working height
  • Swivel Design provides versatility of pulling from multiple angles and corners
  • Beds are plumbed for air to eliminate the need for all those air hoses!
  • 1/2" laser cut top plate plus totally enclosed treadways for additional strength
  • Chain slots and tie-downs along the outside of the 27" treadways as well as the center, allow for multiple quick anchoring and tie-down options.
  • 22 slots per tower for precise pulling angles and quick roller adjustments
  • Multiple pulling capabilities up to 3 pulls per tower!
  • Anchoring comes standard with adjustable, plated Measure Rite Tie-Downs for unibody
  • Your choice of 2 round or slotted towers
  • Newly designed drive over bases with open ends for quick setup
  • Hinge-a-matic non-skid ramps for safe loading and unloading
  • Front and rear removable cross members allows access for working under vehicle
Specifications:
  • Length of Bed (Top) 22' with towers extended 26' 8"
  • Width of bed 86" with towers extended 142"
  • Width of treadway 27"
  • Height 7' 3" with tower extension 9' 3"
  • Working height 27"
  • Lifting Capacity 15 ton ram on lift
  • Air required 100 PSI
  • Pulling power 10 tons per tower
  • Pulling radius 360 degrees


This product ships by truck freight.
You will be contacted with actual shipping charges before you order is processed.

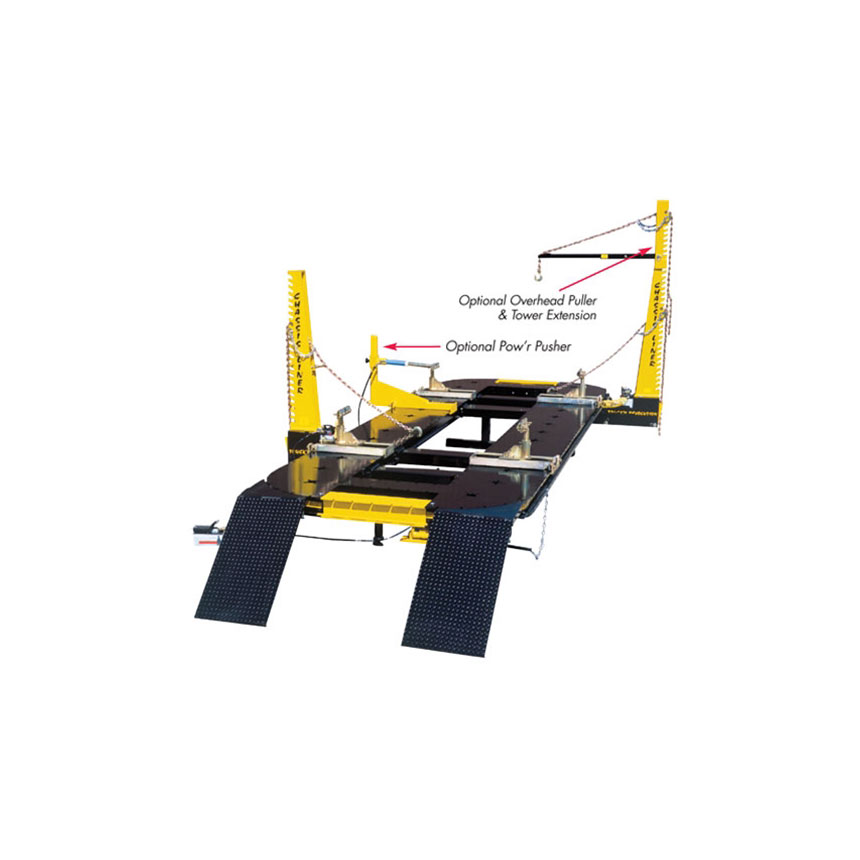

Pictured with optional Pow'R Pusher, Overhead Puller and Tower Extension, These items are not included with purchase.
