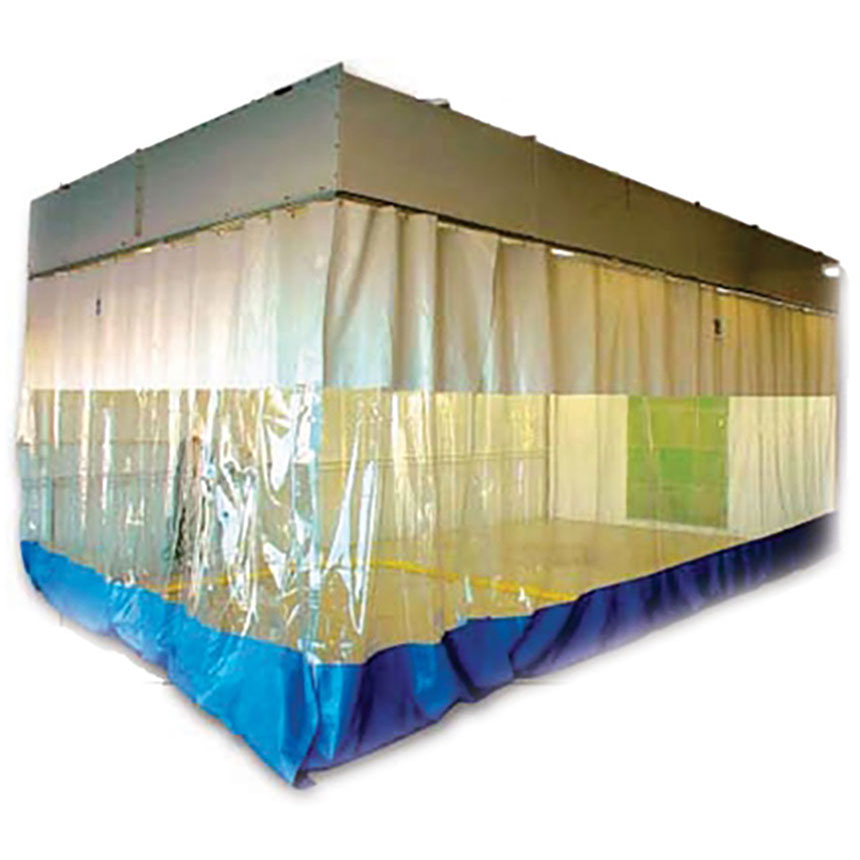

RTT 3-Sided Limited Finishing Prep Station

RTT

SKU #1808723
• Great for painting, sanding, prep work etc.
• Inside dimensions: 14' W x 10' H x 24' L
• Goff Curtain Walls with mounting included for closing off painting area
Availability: In Stock
Price: $16,499.00
$16,499.00
  • Very versatile, great for painting, sanding, prep work etc.
  • 18 gauge galvanized Steel Panels
  • Inside dimensions: 14' W x 10' H x 24' L (actual installed height is required to order Goff Curtain walls)
  • Outside dimensions: 14' 4" W x 12' 2" H x 26' 6" L
  • Includes 8 - four-tube open type light fixtures mounted in roof panel
  • Intake is powered by one (1) 18" diameter tubeaxial fan with a 1.5 hp, three phase motor
  • Exhaust is powered by one (1) 18" diameter tubeaxial fan with a 1.5 hp, three phase motor
  • Goff Curtain Walls with mounting included for closing off painting area
  • Eight (8) four tube, 48" long, 32-watt, LED light fixtures. (bulbs not included)
  • Panels, assembly hardware, filters and sealants needed for installation are included
  • Threaded rod for suspending the intake plenum is not supplied
  • 8705 - 2 sided model - includes front & side curtains. Uses your existing shop walls for back & side
  • 8713 - 3 sided model - included front & 2 side curtains. Uses your existing shop wall for a back wall
  • Prep Station complies with NFPA 33 regulations

Indoor Use Only!

RTT 3 Year Warranty

3 YEAR WARRANTY ON ALL RTT PAINT BOOTHS
The quality and workmanship of RTT paint booths allows them to offer a Three (3) Year Warranty* provided the customer utilizes RTT high performance "A-Series" exhaust filters. Customers must also be registered, and you must have sales information that A-Series filtration was purchased in years 1, 2 and 3 of existence.



Click here for more information on Paint Booths

Ships by truck freight. You will be contacted with final shipping charges.
Forklift required at time of delivery.
