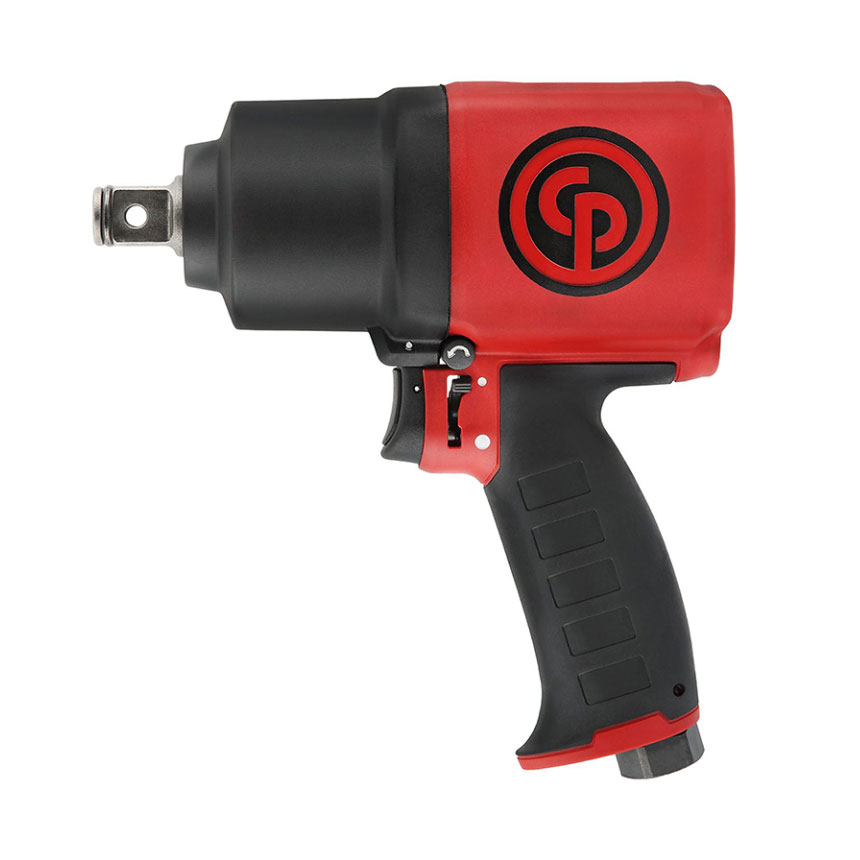

Chicago Pneumatic Tool Heavy Duty 3/4" Impact Wrench with Light Weight Composite Housing - CP7769

Air Tools

SKU #1806399
• 1440 ft-lbs Max Torque
• 6500 rpm Free speed
• One-hand power adjustment
Availability: In Stock
Price: $895.95
$895.95
  • Length = 7.9 in. / 200 mm
  • Variable speed trigger
  • One-hand power adjustment
  • Easy one-hand reverse system
  • 1440 ft-lbs / 1950 Nm of maximum torque
  • Composite motor housing
  • Twin hammer mechanism
  • 360° swivel air inlet
  • Socket retainer ring combined with hole retainer

Specifications

  • Square drive: 3/4quot;
  • Maximum Torque (reverse): 1950 Nm / 1440 ft-lbs
  • Clutch type: Twin hammer
  • Blows per minute: 1200
  • Free speed: 6500 rpm
  • Handle type: Pistol
  • Min. hose size: 1/2quot;
  • Power/weight ratio: 619.05 Nm/kg / 208.70 ft.lb/lb
  • Socket retainer: Dual (hole+friction)
  • Sound Power: 107.8 db(A)
  • Sound pressure: 96.8 db(A)
  • Actual air consumption: 1158 l/mn / 40.7 cfm
  • Air inlet thread size: 3/8quot;
  • Average air consumption: 4.8 //s &#$7; 10.2 cfm
  • Vibration: 12.97 m/s ²
  • Vibration ISO: ISO-28927-2
  • Vibration uncertainty (K): 1-1/2 m/s ²
  • Height: 8.7quot;
  • Length: 8.1quot;
  • Width: 84 mm / 3.3quot;
  • Net weight: 6.9 lbs.
  • European Directives: 2006/42/EC (17/05/2006)
  • European Sound standard: ISO 15744
  • European Standards: EN ISO 11148-6:2012
