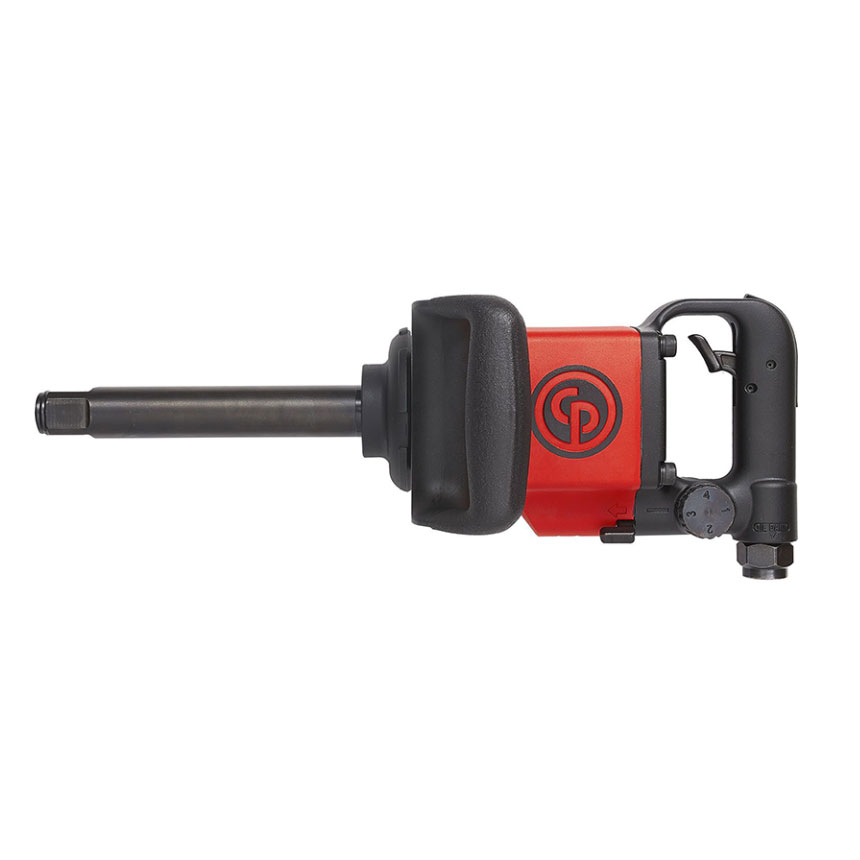

Chicago Pneumatic 1" D-Handle Impact Wrench - CP7773D

Air Tools

SKU #1806401
Availability: In Stock
Price: $814.95
$814.95
  • 1300 ft.lbs. / 1760 Nm in reverse
  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 position power settings on both sides
  • Side handle with soft touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring
  • 1" Drive x 6" extended anvil

Technical Specifications

  • Square Drive: 1"
  • Handle Type: D-Handle Inside Trigger
  • Socket Retainer: Friction Ring
  • Clutch Type: Twin Hammer
  • Working Torque: 250-1070 ft. lb
  • Maximum Torque REV: 1300 ft. lbs
  • Free Speed: 6600 rpm
  • Side to Center: 1.8"
  • Actual Air Consumption: 41 cfm
  • Air Inlet Thread Size: 1/2"
  • Min. Hose Size: 3/8"
  • Sound Pressure: 98 db(A)
  • Sound Power: 109 db(A)
  • Vibration: 12 m/s²
  • Vibration Uncertainty: 3.3 m/s²
  • Net Weight: 16.1 lbs
